Architecting IoT Data Pipelines: Edge Filtering, Stream Processing & Storage
Billions of IoT devices generate nonstop telemetry—sensor readings, logs, events, images—creating massive volumes of distributed data. Without a well-designed pipeline, teams end up drowning in noise, overpaying for cloud ingestion, and missing critical real-time insights.
This guide breaks down how to design a scalable IoT Data Pipeline Architecture that filters data at the edge, processes events in motion, and stores information efficiently. By the end, you’ll understand the essential components, architectural trade-offs, real-world examples, and best practices for building reliable, production-grade IoT systems.
What Is an IoT Data Pipeline & Why It Matters
An IoT data pipeline is the end-to-end system that collects, filters, processes, and stores data from connected devices. It ensures IoT telemetry flows reliably from sensors to edge nodes to cloud analytics.
Why it matters
- Reduce cloud ingestion cost (edge filtering can cut data volume by 60–95%).
- Enable real-time decision making with milliseconds-latency stream processing.
- Improve reliability even in low-connectivity environments.
- Ensure data quality through validation, deduping, normalization.
- Scale to millions of devices using distributed messaging and storage.
Risks if done poorly
- Device battery drain from chatty telemetry
- Costly cloud bills from raw data dumps
- Latency bottlenecks in centralized systems
- Data loss due to overload or downtime
- Unusable analytics from noisy or unstructured data
A great pipeline doesn’t just move data. It shapes data.
How IoT Data Pipelines Work (Architecture Overview)
A production-ready IoT Data Pipeline Architecture typically includes:

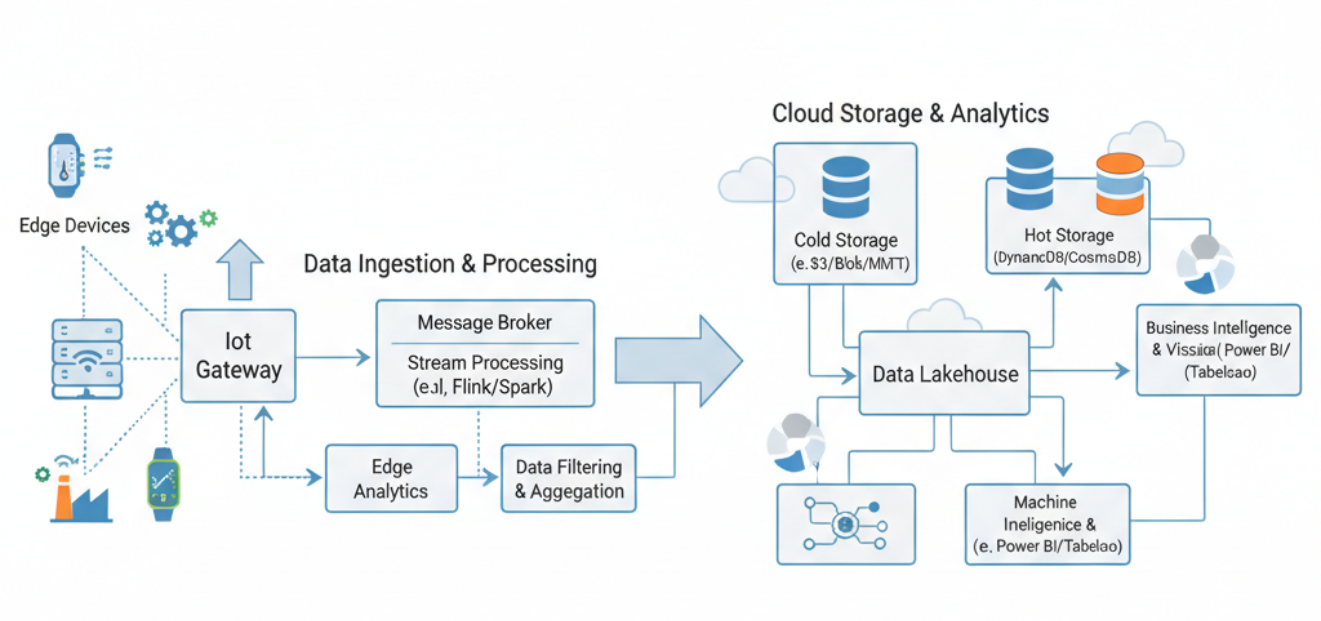

Device Sensors → Edge Node → Message Broker → Stream Processor → Storage (Warm/Cold) → Analytics/Apps
1. Device Layer
Sensors, actuators, embedded systems (BLE, Wi-Fi, LPWAN, Zigbee, CAN, Modbus).
2. Edge Layer
Filters and aggregates data before sending to the cloud.
Common functions:
- Noise reduction
- Downsampling
- Threshold triggers
- Local ML inference
- Protocol translation
3. Message Broker
Ensures reliable ingestion and decoupling of producers/consumers.
Examples: MQTT broker, Kafka, Pulsar, AMQP.
4. Stream Processing Engine
Processes data in motion.
Tasks:
- Windowing
- Aggregations
- Anomaly detection
- Alerts
- Enrichment
5. Storage
- Hot storage: time-series DBs (InfluxDB, Timescale)
- Warm storage: document or columnar DBs
- Cold storage: S3, Azure Blob, GCS, data lakehouses
6. Analytics Layer
Dashboards, ML analysis, digital twins, operational workflows.
If you need a robust device-to-cloud architecture tailored to your use case, reach out to our team.
Best Practices & Common Pitfalls
Best Practices
- Filter at the edge: Remove useless data early.
- Use MQTT QoS for reliability (QoS 1 for critical telemetry).
- Normalize payloads to standard schemas (JSON, Protobuf, Avro).
- Implement backpressure controls to handle surges.
- Encrypt end-to-end (TLS + device identity).
- Batch low-priority data to reduce bandwidth costs.
- Use time-series storage for sensor-heavy workloads.
Pitfalls to Avoid
- Sending raw data directly to the cloud
- Relying solely on Wi-Fi for IoT connectivity
- No dead-letter queue for malformed data
- Overcomplicating ingestion (not everything needs Kafka)
- Ignoring data lifecycle policies (costs explode quickly)
We help design scalable IoT data pipelines that reduce cloud cost and improve reliability—contact us for guidance.
Performance, Cost & Security Considerations
Performance
- Use binary protocols (CBOR, Protobuf) for 50–70% smaller payloads.
- Apply windowed aggregations to reduce message count.
- Deploy regional brokers to reduce device round-trip latency.
Cost Optimization
- Edge filtering dramatically reduces cloud ingestion.
- Archive raw data after 30–90 days.
- Use tiered storage: hot → warm → cold.
- Compress time-series data.
Security
- Unique device identity (X.509 certificates).
- End-to-end TLS for all connections.
- Zero-trust between nodes.
- Secure OTA updates to patch vulnerabilities.
Real-World Use Case: Industrial Motor Monitoring
A manufacturing company deployed vibration sensors on 3,000 motors. Raw data was bursting at 20,000 messages/second.
Solution
- Edge filtering: downsampled signals
- MQTT broker for ingestion
- Flink for real-time anomaly detection
- Time-series DB (Timescale) for hot data
- S3 glacier for archival
Outcome
- 85% reduction in data volume
- Real-time fault detection (sub-second latency)
- 60% reduction in cloud compute cost
.png)
FAQs
1. What is an IoT data pipeline?
A system that collects, processes, and stores data from IoT devices through stages like edge filtering, ingestion, stream processing, and storage.
2. How do IoT devices send data to the cloud?
Usually through MQTT or HTTP to a cloud broker, then into processing engines and databases.
3. What is edge processing?
Filtering or analyzing data locally on the device or gateway before uploading to reduce bandwidth and latency.
4. What is stream processing in IoT?
Real-time processing of continuously flowing sensor data to detect patterns, anomalies, or trigger immediate actions.
5. Which database is best for IoT data?
Time-series databases like InfluxDB or Timescale for high-frequency sensor data; object storage for long-term retention.
6. How do you design an IoT data pipeline?
Define data sources → plan edge filtering → choose broker → pick stream processor → select storage tiers → secure communication.
An efficient IoT data pipeline doesn’t just move data—it transforms raw signals into actionable intelligence at scale.
Conclusion
Building a modern IoT data pipeline means finding the right balance between edge efficiency, real-time stream processing, and scalable storage. Edge filtering keeps the noise out and the costs down. Stream processing turns continuous telemetry into insights within milliseconds. And a tiered storage model ensures you can retain and analyze the data that truly matters without blowing up your budget.
With a well-designed architecture, organizations can support millions of devices, enable real-time intelligence, and future-proof their IoT infrastructure. If you're evaluating or redesigning your IoT pipeline, expert guidance can help you avoid costly mistakes and accelerate deployment.
