Blueprint for a Production-Grade Agent Stack
Many teams can get an AI agent working in a demo. Far fewer can run one reliably in production.
The difference isn’t the model—it’s the stack around the agent. Production-grade agentic systems require clear orchestration, controlled tool access, observability, and a rollout plan that accounts for risk, cost, and ownership.
This article outlines a vendor-neutral blueprint for a production-grade agent stack, focusing on the components enterprises actually need to operate agents safely and at scale.
What “Production-Grade” Means for Agents
A production-grade agent stack is not defined by sophistication. It’s defined by:
- Predictable behavior
- Controlled access to systems and data
- Measurable performance and cost
- Clear ownership and governance
If an agent can’t be audited, paused, or rolled back, it’s not production-ready—regardless of how impressive the demo looks.
The Core Layers of a Production-Grade Agent Stack
1. User Interface (UI)
The UI is not just where users interact with the agent—it’s where control and accountability live.
Production UIs should support:
- Clear task initiation and context input
- Visibility into agent status and progress
- Review and approval of agent outputs
- Error handling and escalation
This may be a chat-style interface, a form-driven workflow, or an embedded panel inside an existing system. The key requirement is clarity, not novelty.
2. Orchestration Layer
Orchestration is the backbone of an agentic workflow.
This layer is responsible for:
- Managing multi-step plans
- Handling retries and failures
- Enforcing timeouts and limits
- Routing decisions to humans when needed
In production, orchestration logic should be explicit and inspectable, not implicit inside prompts. This allows teams to reason about behavior, debug issues, and make changes safely.
3. Tools and APIs
Agents are only as powerful—and as safe—as the tools they can call.
A production stack should enforce:
- Explicit tool allowlists
- Clear tool purpose and contracts
- Environment separation (dev vs prod)
- Rate limits and safeguards
Tools should behave like well-defined services, not open-ended capabilities. If a tool’s behavior can’t be explained, it shouldn’t be callable by an agent.
4. Data and Retrieval Layer
Most production agents rely on retrieval rather than raw model knowledge.
Key requirements:
- Approved data sources only
- Retrieval boundaries by role, team, or use case
- Versioned and auditable content
- Clear handling of sensitive data
Retrieval is both a relevance layer and a security boundary. Overly broad access is one of the most common causes of agent failure.
5. Evaluation and Quality Controls
Production systems need ongoing evaluation, not one-time testing.
Evaluation should cover:
- Accuracy and completeness
- Policy compliance
- Consistency over time
- Failure modes and edge cases
This can include offline test sets, shadow mode comparisons, and periodic human review. The goal is not perfection, but early detection of drift.
6. Observability and Logging
If you can’t see what the agent did, you can’t operate it responsibly.
Production observability should include:
- Structured logs of agent decisions
- Tool calls and parameters
- Inputs, outputs, and approvals
- Latency and failure metrics
Logs should be immutable, queryable, and retained according to compliance needs. Observability is what turns agents from experiments into systems.
7. Cost Controls
Agent cost can scale faster than teams expect if left unmanaged.
A production stack should support:
- Per-workflow or per-task cost tracking
- Usage limits and quotas
- Alerts for anomalous behavior
- Cost-aware routing (e.g., different models for different tasks)
Cost controls are not just about savings—they are a guardrail against runaway behavior.

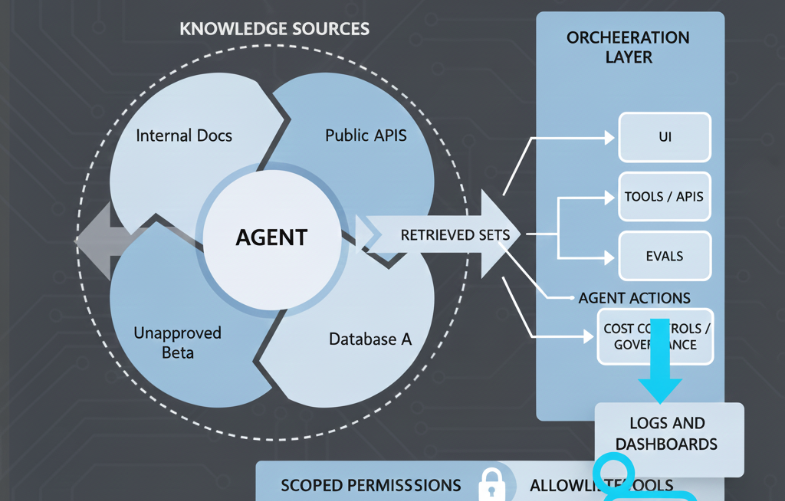

A Reference Architecture (Described)
A typical production-grade agent stack looks like this:
- Top layer: User Interface (dashboard, embedded UI, or workflow form)
- Below: Orchestration layer managing plans, steps, and approvals
- Side inputs:
- Tool/API layer (allowlisted services)
- Data and retrieval layer (bounded knowledge sources)
- Cross-cutting layers:
- Evaluation and policy checks
- Observability and logging
- Cost and usage controls
Humans sit at defined approval points—not watching everything, but stepping in when risk or ambiguity is high.
.png)
Rolling Out the Stack Safely
A common rollout pattern looks like this:
- Pilot with one workflow
Narrow scope, clear owner, measurable baseline. - Run in shadow or recommend mode
Validate quality and cost before autonomy. - Harden controls and logging
Lock down permissions, tools, and auditability. - Expand scope gradually
Add workflows once behavior is predictable. - Operationalize ownership
Define who maintains, monitors, and evolves the system.
Production readiness is achieved through iteration, not a single launch.
Common Pitfalls to Avoid
- Embedding all logic in prompts
- Giving agents broad, shared credentials
- Skipping observability “for later”
- Treating evaluation as a one-time task
- Rolling out across many workflows at once
Most agent failures are architectural, not algorithmic.
Final Thought
A production-grade agent stack is less about intelligence and more about infrastructure discipline. Teams that invest early in orchestration, boundaries, and observability move faster over time—and with far less risk.
Agents don’t need to be magical to be valuable. They need to be operable.
Production-grade agents are built on infrastructure discipline, not model sophistication.
We’ve distilled this architecture into a 1-page Production-Grade Agent Stack Blueprint you can use to review or design your own system.
Request the blueprint to get:
- A reference architecture checklist
- Key questions for each layer
- Common failure points to watch for
If you’d like to discuss how this stack maps to your current environment, contact us and we’ll set up a focused walkthrough.
