Environmental Ruggedization Design: Building Devices That Survive Harsh Conditions
A product can work perfectly in the lab and fail within weeks in the field.
That is the core problem environmental ruggedization design solves. A clean bench test does not represent road dust, monsoon rain, vibration from machines, salt air near the coast, voltage spikes, poor installation practices, or direct sunlight on a sealed enclosure.
For IoT devices, embedded systems, outdoor gateways, industrial controllers, and field sensors, ruggedization is not only about a stronger box. It is about designing the full system to survive its operating environment.
In this guide, you will learn what ruggedization means, how it works, which design choices matter, what standards to know, and how to avoid common field failures.
What Is Environmental Ruggedization Design?
Environmental ruggedization design is the process of making hardware, electronics, firmware, and enclosures reliable under harsh physical conditions.
Those conditions may include:
- High and low temperature
- Rain, washdown, and water jets
- Dust, sand, and fine particles
- High humidity and condensation
- Vibration from vehicles or machinery
- Mechanical shock and drops
- UV exposure from sunlight
- Salt fog and corrosion
- Electrical noise and voltage disturbances
- Insect, rodent, or plant exposure in outdoor installations
For a simple consumer device, ruggedization may mean splash resistance and drop protection. For an industrial IoT device, it may mean IP-rated sealing, thermal derating, vibration-resistant connectors, conformal coating, secure mounting, surge protection, field diagnostics, and maintenance-friendly design.
The key point is simple: ruggedization must match the real environment.
A device installed inside an air-conditioned control room does not need the same design as a pole-mounted air quality monitor, a mining sensor, a vehicle gateway, or a smart agriculture controller.
Why Ruggedization Matters
Ruggedization protects more than hardware. It protects uptime, service cost, warranty exposure, customer trust, and safety.
When field devices fail, the visible cost is the replacement unit. The hidden cost is often larger:
- Technician visits
- Truck rolls
- Downtime
- Missed data
- SLA penalties
- Customer escalation
- Product reputation damage
- Engineering time spent debugging field failures
For connected devices, failure is not always complete shutdown. Sometimes the device continues running but produces bad data. A sensor may drift because of condensation. A gateway may reboot under heat. A connector may loosen due to vibration. A sealed enclosure may trap heat and slowly age internal components.
That is why environmental ruggedization design should begin before enclosure selection, PCB layout, connector choice, and firmware architecture.
Benefits of Good Ruggedization
Good ruggedization gives a product four practical advantages.
Longer field life
The device is designed around known stress conditions instead of ideal lab assumptions. This improves product life and reduces early failures.
Lower maintenance cost
Better sealing, connectors, mounting, and diagnostics reduce unnecessary service visits.
More reliable data
Sensors and electronics remain stable under changing temperature, humidity, vibration, and contamination.
Easier certification and customer acceptance
Many buyers in industrial, defense, infrastructure, utilities, healthcare, mobility, and smart city markets ask about IP rating, shock, vibration, thermal range, and test evidence.
Ruggedization Trade-Offs
Ruggedization always involves trade-offs.
A sealed enclosure improves dust and water resistance but can make heat dissipation harder. A metal enclosure improves strength and heat spreading but may affect wireless signal performance. Potting protects electronics from moisture and vibration but makes repair difficult. A higher IP rating may increase cost and make pressure equalization harder.
The goal is not to make every product “maximum rugged.” The goal is to make the right product for the right environment at the right cost.
How Environmental Ruggedization Design Works
Think of ruggedization as a layered design model.
Layer 1: Environment Definition
Start by defining where the product will live.
Ask practical questions:
- Is it indoor, outdoor, vehicle-mounted, handheld, or pole-mounted?
- What is the operating temperature range?
- Will it face rain, spray, washdown, or submersion?
- Is dust fine, abrasive, conductive, or chemically active?
- Will there be vibration from engines, compressors, pumps, fans, or vehicles?
- Is the location coastal, chemical, agricultural, industrial, or urban?
- Who installs and maintains it?
- How often can it be serviced?
- What happens if it fails?
This step prevents overdesign and underdesign.
Layer 2: Failure Mode Thinking
Next, identify how the product can fail.
Common failure modes include:
- Water entering through cable glands
- Condensation forming inside a sealed enclosure
- PCB corrosion due to humidity
- Connector loosening under vibration
- Sensor inlet clogging with dust
- Battery capacity dropping in cold weather
- Processor overheating inside a sealed box
- Plastic enclosure cracking under UV exposure
- Antenna performance dropping because of enclosure material
- Firmware not recovering after brownouts or network loss
Ruggedization is strongest when each expected failure mode has a design response.
Layer 3: Mechanical Protection
Mechanical design includes enclosure material, wall thickness, mounting, gasketing, cable entry, vents, fasteners, and impact protection.
Industrial enclosure design should consider:
- IP rating target
- Impact resistance
- UV stability
- Corrosion resistance
- Ease of installation
- Cable strain relief
- Service access
- Heat dissipation
- Drainage and pressure equalization
- Tamper resistance
IEC 60529 defines IP code protection levels for enclosures against dust and water ingress. It is useful because it replaces vague claims with a more structured protection classification.
Layer 4: Electronics Protection
The PCB and electronic components must support the ruggedization goal.
Important design choices include:
- Wide-temperature components
- Conformal coating for moisture and corrosion resistance
- Surge and ESD protection
- Reverse polarity protection
- Input filtering
- Secure connector retention
- Creepage and clearance for electrical safety
- Thermal vias and copper pours
- Board-level mechanical support
- Sensor protection without blocking measurement accuracy
For embedded system ruggedization, component selection matters early. A low-cost connector, consumer-grade capacitor, or poorly supported PCB can become the weakest point in the system.
Layer 5: Thermal Design
Thermal management is one of the most underestimated parts of rugged product design.
A sealed enclosure may protect against dust and water but trap heat. Outdoor devices may face direct solar loading. Electronics that are safe at room temperature may run near their limits inside an enclosure on a hot day.
Good thermal design may include:
- Lower-power electronics
- Heat spreaders
- Thermal pads
- Metal base plates
- Venting membranes
- Component derating
- Smart power modes
- Solar shielding
- Enclosure color and placement decisions
- Firmware-based thermal throttling
Thermal design should be measured in the final enclosure, not only estimated from component datasheets.
Layer 6: Firmware Resilience
Ruggedization is not only physical.
Firmware should help the device survive field conditions. That means the product should recover from unstable power, intermittent networks, sensor faults, memory issues, and high-temperature events.
Useful firmware features include:
- Watchdog timers
- Safe boot and rollback
- Local buffering when cloud connectivity fails
- Sensor fault detection
- Brownout handling
- Health telemetry
- Remote logs
- Over-the-air update control
- Temperature-aware operating modes
- Graceful degradation instead of full failure
A rugged device should not need a technician visit for every software or communication fault.
Layer 7: Test and Validation
Testing confirms whether the design works under expected stress.
IEC 60068 is widely used for environmental testing of electrotechnical products and covers test methods for conditions such as cold, dry heat, vibration, shock, and humidity.
MIL-STD-810H is also often referenced for rugged products. It gives environmental engineering guidance and laboratory test methods for considering environmental stresses across a product’s service life. Importantly, it is not a one-size-fits-all design specification; tests should be tailored to the real use case.
Standards and Test References to Know
Several standards and test frameworks may be relevant depending on your market.
IEC 60529 for IP ratings
IEC 60529 defines ingress protection ratings for electrical and electronic enclosures. It helps classify how well an enclosure resists dust and water.
For example, IP-rated design is common in outdoor IoT, industrial control panels, smart city devices, building automation, agriculture systems, and environmental monitoring devices.
IEC 60068 for environmental testing
IEC 60068 is used for environmental testing of electronic and electrotechnical products. It includes tests related to cold, dry heat, damp heat, vibration, shock, and other environmental stresses.
MIL-STD-810H for harsh condition test planning
MIL-STD-810H is widely referenced for rugged equipment, especially when products may face transport, vibration, shock, humidity, temperature, rain, dust, and other field stresses. The standard emphasizes tailoring tests to actual service conditions rather than treating the document as a generic pass/fail badge.
Product-specific standards
Depending on the product, you may also need standards for electrical safety, EMC, radio approvals, hazardous locations, medical devices, automotive use, railway use, marine environments, or telecom installations.
The main takeaway: do not choose a standard because it sounds impressive. Choose it because your customer, use case, and risk profile require it.
Facing field failures in an IoT or embedded product? Infolitz can help review your enclosure, PCB, firmware, cloud diagnostics, and test plan before small issues become expensive deployments.
Tools and Stack Options for Rugged Product Design
Ruggedization requires cross-functional tools. Mechanical, electronics, firmware, test, and cloud teams must work from the same environmental assumptions.
Mechanical CAD
Tools such as SolidWorks, Fusion 360, Creo, and similar CAD platforms help design enclosures, brackets, mounting features, cable paths, seals, and assembly structure.
Use them to validate:
- Enclosure fit
- Mounting clearances
- Gasket compression
- Cable routing
- Fastener access
- Serviceability
- Internal heat paths
PCB Design Tools
Tools such as Altium Designer, KiCad, OrCAD, and Eagle support PCB design for rugged electronics.
Use them to plan:
- Thermal copper
- Connector placement
- Mounting holes
- Keep-outs
- High-voltage spacing
- Surge protection
- Test points
- Sensor placement
- Mechanical support
Simulation Tools
Thermal and mechanical simulation tools can help estimate heat buildup, stress points, and airflow limits. They do not replace testing, but they reduce avoidable mistakes before prototyping.
Environmental Test Chambers

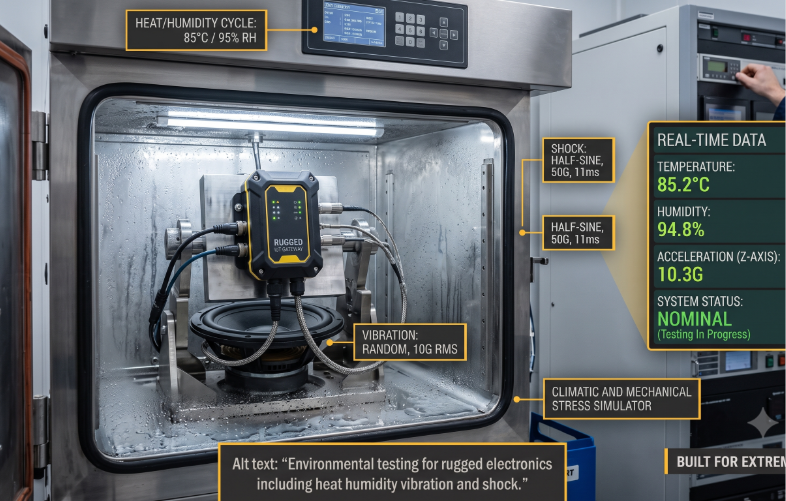

Test chambers help validate temperature, humidity, thermal cycling, and sometimes combined environmental stress.
Use them when:
- Components have narrow thermal margins
- Devices are sealed
- Outdoor deployment is expected
- Product warranty risk is high
- Customers require test evidence
Vibration and Shock Test Equipment
Vibration tables and shock test setups help validate vehicle-mounted devices, machinery-mounted sensors, handheld products, and transport packaging.
IEC 60068-2-6, for example, is associated with sinusoidal vibration testing over a defined frequency range and duration.
Field Telemetry Stack
For connected products, cloud diagnostics are part of ruggedization.
A strong telemetry stack can track:
- Device uptime
- Reboot frequency
- Internal temperature
- Signal strength
- Battery voltage
- Sensor health
- Firmware version
- Network dropouts
- Error codes
- Data gaps
This is where IoT ruggedization becomes more powerful than traditional hardware-only design. The device can report early signs of stress before complete failure.
Best Practices for Environmental Ruggedization Design
Define the real environment before designing
Do not start with “IP67” or “MIL-grade” as a design slogan. Start with the actual field environment.
A device installed under a roof in a factory needs a different design from one exposed to coastal salt spray, road vibration, and direct sun.
Design the enclosure and PCB together
The PCB cannot be designed in isolation. Connector location, heat sources, sensor openings, antennas, mounting screws, and service access all depend on enclosure design.
Protect cable entry points
Many water ingress failures happen through cable glands, connectors, vents, and poorly compressed gaskets. The enclosure body may be strong, but the entry points are often weak.
Plan for condensation
A sealed enclosure can still develop condensation due to temperature swings and trapped moisture. Pressure changes can also stress seals.
Design responses may include:
- Vent membranes
- Desiccants
- Drain paths
- Hydrophobic barriers
- Conformal coating
- Proper installation orientation
- Controlled assembly process
Use rugged connectors where needed
Connectors should match vibration, moisture, current, serviceability, and installation requirements.
For field devices, connector mistakes are common. A connector may work in the lab but fail after repeated maintenance, cable pull, road vibration, or installer handling.
Derate components
Do not run components at their absolute maximum limits. Use derating for temperature, voltage, current, and power.
This is especially important for power supplies, batteries, capacitors, processors, communication modules, and high-current paths.
Make installation foolproof
A rugged product can still fail if it is installed incorrectly.
Design for:
- Clear mounting orientation
- Cable strain relief
- Installer-friendly labels
- Protected connectors
- Simple commissioning
- Error-proof power wiring
- Field diagnostics
- QR-code-based setup guides
Test after assembly, not only at component level
A gasket, PCB, connector, and enclosure may each pass individual checks. The assembled product may still fail due to tolerance stack-up, heat buildup, cable routing, or installation stress.
Collect field data after deployment
Ruggedization improves over product generations. Use field telemetry and service logs to identify patterns.
Look for:
- Failures by region
- Failures by installer
- Failures by firmware version
- Failures by enclosure batch
- Temperature-related resets
- Humidity-related sensor drift
- Connectivity issues linked to mounting location
Common Pitfalls
Treating IP rating as the whole ruggedization strategy
An IP rating is important, but it does not cover everything. It does not automatically solve thermal design, vibration, corrosion, UV exposure, electrical surges, or firmware recovery.
Ignoring thermal buildup in sealed boxes
A sealed enclosure can turn into a heat trap. This is especially risky for outdoor electronics, power electronics, gateways, and cellular devices.
Choosing connectors too late
Connectors affect enclosure design, sealing, PCB layout, cable assembly, serviceability, and test strategy. They should be selected early.
Forgetting maintenance
If a device is hard to open, diagnose, update, or replace, service cost rises. Ruggedization should make maintenance safer and easier, not impossible.
Overusing potting
Potting protects against vibration and moisture, but it can trap heat, add weight, increase cost, and make repair impossible. Use it only when the trade-off is justified.
Testing only in the lab
Lab testing is controlled. Field conditions are messy. A rugged product strategy should combine lab testing, pilot deployment, telemetry, and failure analysis.
Performance Considerations
Ruggedization affects product performance in several ways.
Wireless performance
Metal enclosures, thick walls, mounting surfaces, and internal placement can reduce Wi-Fi, Bluetooth, GNSS, LoRa, NB-IoT, or cellular performance.
Designers should test wireless performance in the final enclosure and real mounting orientation.
Sensor accuracy
Sensor openings need protection from water and dust, but too much protection can affect airflow, response time, and measurement accuracy.
This is important for air quality sensors, gas sensors, temperature sensors, humidity sensors, pressure sensors, and flow sensors.
Thermal throttling
Processors, modems, and power supplies may reduce performance or shut down when they overheat. Firmware should detect and respond before damage occurs.
Power consumption
Heating elements, cellular retries, sensor compensation, and higher-power processors can affect battery life. Rugged outdoor devices need a power budget based on worst-case conditions.
Cost Considerations
Ruggedization increases some upfront costs, but it often reduces lifecycle cost.
Cost drivers include:
- Higher-grade enclosure material
- Custom sealing
- Rugged connectors
- Wide-temperature components
- Conformal coating
- Surge protection
- Environmental testing
- Certification support
- Field service design
- Better mounting hardware
The right cost question is not “How much does ruggedization add?”
The better question is: “How much does one field failure cost?”
For products deployed in hundreds or thousands of locations, even a small failure rate can become expensive. Technician visits, replacements, downtime, and customer escalation can quickly exceed the cost of better design.
Security Considerations for Rugged IoT Devices
For IoT and embedded products, environmental ruggedization and cybersecurity should work together.
A rugged field device may be installed in public or semi-public locations. That creates physical and digital risks.
Security design should include:
- Tamper-resistant enclosure features
- Secure boot
- Signed firmware updates
- Device identity and certificates
- Encrypted communication
- Local data protection
- Debug port control
- Role-based access
- Audit logs
- Remote disable or quarantine options
A physically rugged device that can be easily tampered with is not truly field-ready.
If your device must survive both harsh environments and real-world deployment risk, Infolitz can help connect hardware design, embedded firmware, cloud telemetry, and security into one practical engineering roadmap.
Real-World Mini Case Study: Rugged Outdoor Air Quality Monitor
Consider a company building an outdoor air quality monitoring device for smart city and industrial sites.
Before
The prototype worked well indoors. It used a plastic enclosure, standard connectors, a particulate matter sensor, a cellular module, and a cloud dashboard.
During early outdoor pilots, the team saw recurring issues:
- Sensor readings drifted after heavy rain
- Cellular signal dropped when the device was mounted on metal poles
- Internal temperature rose during afternoon sun
- Dust accumulated near the sensor inlet
- Field technicians reported confusing cable access
- Some devices rebooted during unstable power conditions
The product did not fail in one dramatic way. It failed through many small field problems.
Solution
The engineering team redesigned the device around environmental ruggedization principles.
They changed the enclosure orientation, improved cable gland placement, added better strain relief, selected UV-stable material, improved sensor inlet protection, adjusted internal airflow, added surge protection, and revised firmware recovery behavior.
They also added cloud diagnostics to monitor internal temperature, reboot count, signal strength, sensor status, and data gaps.
The team did not simply “make the box stronger.” They connected mechanical design, electronics protection, firmware resilience, installation workflow, and cloud observability.
After
The next pilot version showed a stronger field profile.
- Fewer weather-related service visits
- More stable sensor uptime
- Faster installation
- Better signal visibility before failures
- Clearer root cause analysis when issues occurred
- More confidence from operations teams and end customers
A useful ruggedization outcome is not only that the device survives. It is that the business can deploy, monitor, maintain, and scale it with less uncertainty.
Comparisons: Ruggedization vs Common Alternatives
Ruggedization vs Standard Product Design
Standard product design assumes controlled use. Ruggedization assumes stress.
A standard indoor device may prioritize size, appearance, and cost. A rugged field device prioritizes reliability, protection, serviceability, and long-term behavior under changing conditions.
Ruggedization vs Overengineering
Ruggedization is not overengineering.
Overengineering adds unnecessary cost without matching real risk. Ruggedization studies the actual environment and designs for expected failure modes.
For example, a device under a covered factory roof may not need full outdoor sealing. But it may need vibration-resistant connectors, dust protection, and surge protection.
IP Rating vs MIL-STD Testing
IP rating focuses on enclosure protection against solids and liquids under defined test conditions. MIL-STD-810H focuses on environmental engineering considerations and test methods for stresses such as temperature, rain, humidity, shock, vibration, sand, dust, and more. IEC 60529 covers ingress protection classification, while MIL-STD-810H is used for tailored environmental test planning.
Both can be useful, but neither should be treated as a complete product reliability strategy.
Conformal Coating vs Potting
Conformal coating adds a protective layer over the PCB. It helps against moisture, dust, and corrosion while keeping the board relatively serviceable.
Potting encapsulates electronics more fully. It can improve protection against moisture, shock, and vibration but may trap heat and make repair difficult.
The right choice depends on environment, thermal load, repair strategy, cost, and expected product life.
Step-by-Step Ruggedization Process
Step 1: Define the field environment
Document operating temperature, humidity, dust, water exposure, vibration, shock, UV, corrosion, installation method, and maintenance access.
Step 2: Identify failure modes
List how the product can fail mechanically, electrically, thermally, chemically, and digitally.
Step 3: Set protection targets
Choose realistic targets for IP rating, operating temperature, vibration resistance, surge protection, corrosion protection, and field service life.
Step 4: Design enclosure and PCB together
Align enclosure, PCB, connectors, antennas, sensors, cables, heat paths, fasteners, and mounting.
Step 5: Add firmware resilience
Include watchdogs, safe boot, local buffering, error reporting, health telemetry, and remote update controls.
Step 6: Build prototypes for stress testing
Test the assembled product, not only the components.
Step 7: Run field pilots
Deploy in real conditions. Measure failures, installation issues, signal strength, temperature, sensor behavior, and technician feedback.
Step 8: Improve before scaling
Use test results and field data to refine enclosure design, firmware, installation guides, and service workflows.
.png)
FAQs
What is environmental ruggedization design?
Environmental ruggedization design is the process of designing products to operate reliably under harsh conditions such as heat, cold, dust, water, vibration, shock, humidity, corrosion, and electrical disturbances.
Why does ruggedization matter for IoT devices?
IoT devices often run unattended in real environments. Ruggedization improves uptime, protects data quality, reduces truck rolls, and lowers long-term service cost.
Is an IP67 device always better than an IP65 device?
Not always. IP67 may be useful for temporary immersion, but IP65 may be enough for many outdoor spray and dust conditions. The right rating depends on the actual use case, installation, cleaning method, and maintenance expectations.
What is the role of IEC 60529?
IEC 60529 defines IP ratings for enclosure protection against dust and water ingress. It gives buyers and engineers a structured way to discuss ingress protection.
What is the role of IEC 60068?
IEC 60068 provides environmental testing methods for electrotechnical products, including tests related to temperature, humidity, vibration, and shock.
What is MIL-STD-810H?
MIL-STD-810H is a test method standard for environmental engineering considerations and laboratory tests. It helps teams tailor environmental tests to expected service conditions.
Can ruggedization be added after product design?
Some improvements can be added later, but major ruggedization decisions should happen early. Enclosure, PCB layout, connectors, antenna placement, thermal path, and sealing strategy are hard to fix late without redesign.
What is the most common rugged device failure?
There is no single failure for all products, but common issues include water ingress, connector failure, overheating, corrosion, vibration damage, sensor contamination, and power instability.
Does ruggedization increase product cost?
Yes, it can increase upfront cost. But for field-deployed products, it often reduces total cost by lowering failures, replacements, technician visits, and customer escalations.
How do you know if a rugged product is ready for deployment?
A product is ready when it passes relevant lab tests, survives field pilots, provides reliable telemetry, has clear installation instructions, and includes a practical maintenance plan.
Ruggedization is not about making a product look stronger. It is about designing every enclosure, connector, PCB, sensor, and firmware response for the conditions it will actually face.
Conclusion
Environmental ruggedization design turns a lab-ready product into a field-ready product. It helps IoT, embedded, and industrial devices survive heat, dust, water, vibration, shock, humidity, corrosion, and unstable power conditions without frequent failures.
The strongest rugged products are not built by choosing a tougher enclosure at the end. They are built by thinking early about the real environment, likely failure modes, thermal behavior, sealing, connectors, firmware recovery, field diagnostics, and serviceability.
For teams building outdoor devices, industrial electronics, smart city systems, or field-deployed IoT products, ruggedization is not an optional upgrade. It is the difference between a product that works in a demo and a product that performs reliably at scale.
Building an IoT, embedded, or industrial device for harsh real-world conditions? Talk to Infolitz to design rugged hardware, firmware, cloud diagnostics, and field-ready systems that can scale beyond the lab.
