From Sensor to Dashboard: A Production IoT Data Pipeline Blueprint
An IoT demo is easy. A production IoT data pipeline is not.
Getting a sensor to publish one payload to the cloud proves connectivity. It does not prove that your system can survive network drops, burst traffic, schema changes, offline devices, retention policies, dashboard queries, or alert storms. That is where many teams discover that “device connected” and “solution ready” are two very different milestones.
This guide breaks down the full path from sensor to dashboard in plain terms. You will learn how a production-grade IoT data pipeline works, which building blocks matter most, where teams overspend, and how to design for reliability before your pilot becomes a fleet. Where useful, I also map common tool choices and the trade-offs behind them.
What Is an IoT Data Pipeline, and Why Does It Matter?
An IoT data pipeline is the end-to-end path that moves data from devices into systems that can store it, visualize it, alert on it, and act on it. In practice, that usually means a device or gateway publishes telemetry, a broker or hub ingests it, rules or stream processors route and enrich it, a database stores it, and a dashboard or downstream application turns it into decisions. MQTT is widely used for this first mile because it is a lightweight publish/subscribe protocol designed for constrained environments and bandwidth-limited links.
Why this matters in production is simple: raw connectivity does not equal operational visibility. A real pipeline must support message delivery trade-offs, filtering, state synchronization, durable storage, and downstream consumption by dashboards or business systems. Kafka, for example, is built as a distributed event-streaming platform for high-performance pipelines and durable storage, while cloud IoT services such as AWS IoT Core and Azure IoT Hub add routing and device-management features on top of ingestion.
The core benefits are clear:
- decoupling devices from apps
- isolating failures
- enabling replay or reprocessing
- supporting real-time dashboards and alerts
- controlling storage and cloud costs through filtering and aggregation
The risks are just as real:
- direct device-to-database writes create brittle architectures
- mixing telemetry, commands, and configuration causes topic chaos
- dashboards become the first place teams notice missing data
- retention and alerting costs grow faster than expected
A useful rule: treat the pipeline as a product, not plumbing.
How an IoT Data Pipeline Works

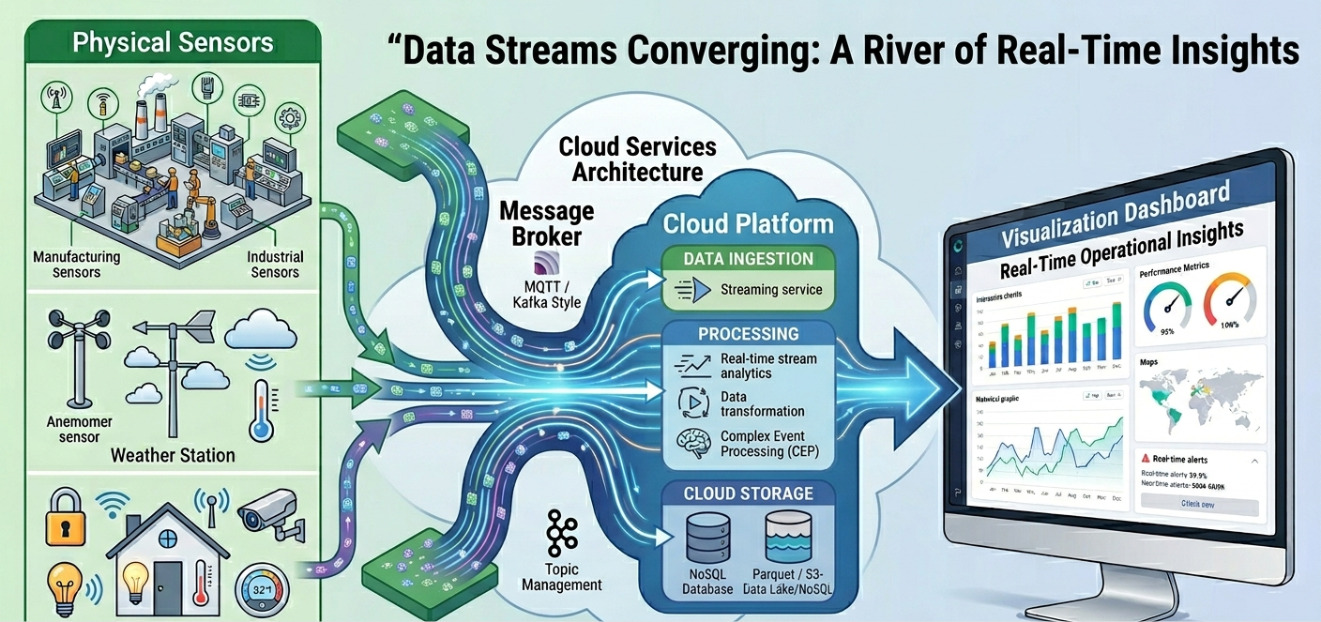

The easiest way to understand a production IoT data pipeline is to break it into seven layers.
1. Device layer
The sensor or embedded device samples data and packages it into a message. This message should be compact, versioned, and explicit about timestamp, unit, and device identity. The firmware should also distinguish between:
- telemetry: measurements like temperature, vibration, or pressure
- state: battery, connectivity, firmware version, relay status
- commands: desired actions such as reboot, set threshold, or update config
2. Edge or gateway layer
Not every reading needs to hit the cloud. Edge computing moves processing closer to the endpoint, which improves responsiveness and reduces the cost of transferring large volumes of raw data upstream. In other words, filtering, buffering, local rules, and protocol translation often belong here.
Typical edge tasks include:
- local buffering during outages
- averaging or downsampling high-frequency signals
- threshold detection
- protocol conversion from Modbus, BLE, CAN, or serial into MQTT/HTTP
- local alerting when cloud latency is unacceptable
3. Broker or ingestion layer
This is where device messages first land in a shared system. MQTT brokers and cloud IoT hubs are common here. AWS IoT Core rules can filter and route messages from MQTT topic streams into other AWS services, while Azure IoT Hub message routing can filter messages and send them to built-in or custom endpoints such as Event Hubs, Storage, Service Bus, or Cosmos DB. EMQX also exposes a built-in SQL-style rules engine for real-time extraction, filtering, enrichment, and transformation.
For MQTT specifically, QoS is a key production choice:
- QoS 0 for non-critical, frequent telemetry
- QoS 1 when delivery matters and duplicates are acceptable
- QoS 2 when exactly-once semantics justify extra overhead
Higher QoS improves delivery guarantees but increases network overhead and latency.
4. State and control plane
Production systems need more than measurements. They need synchronized device state. AWS Device Shadow stores a device’s virtual state in the cloud so apps and services can interact with it even when the device is offline. Azure device twins serve a similar purpose, storing metadata, desired properties, and reported properties so back-end apps and devices can stay in sync across reconnects and long-running operations such as firmware rollout.
This is the layer that prevents “is the device broken, or just offline?” confusion.
5. Stream and integration layer
Once data is ingested, many teams need a middle layer that can fan out data reliably to storage, analytics, and external systems. Kafka is designed for this kind of role: durable event streaming, high throughput, scalable clusters, and built-in stream processing. Kafka Connect adds a standardized way to move data between Kafka and databases, search engines, file systems, and other sinks with low latency.
6. Storage layer
IoT storage is usually split by purpose:
- hot data for recent dashboards and alerts
- warm data for operational analysis
- cold data for compliance, audit, or ML history
Time-series systems are a natural fit here. InfluxDB positions itself as a time-series engine for high-speed, high-cardinality workloads, while TimescaleDB extends PostgreSQL for real-time analytics on time-series and event data. Telegraf is often used as a lightweight collection and forwarding agent between devices, systems, and storage.
7. Visualization and alerting layer
Dashboards are not the pipeline, but they are where operations feels the pipeline. Grafana can unify many data sources into a single dashboard experience and supports cross-source alerting and notification routing. That makes it useful when telemetry, logs, and service metrics all need to be seen together.
Common pitfalls
Pitfall 1: Writing device data directly into an application database
This seems fast early on, but it removes buffering, replay, routing flexibility, and clean separation between ingestion and application logic.
Pitfall 2: Treating all messages equally
Fast-changing telemetry, firmware rollout state, and alarm conditions should not share identical QoS, retention, and alerting logic. MQTT’s QoS model exists precisely because not all messages deserve the same guarantee.
Pitfall 3: Ignoring offline state
Offline devices are normal in IoT. State services such as AWS Device Shadow and Azure device twins help systems remain usable across disconnects.
Pitfall 4: Building the dashboard before the data contract
A pretty chart does not fix missing timestamps, unit mismatches, or ambiguous sensor names.
Performance, Cost, and Security Considerations
Performance and cost are tightly linked in IoT. Sending every raw sample to the cloud may be easy, but it is often the wrong economic choice. AWS’s IoT guidance explicitly notes that edge processing can reduce cloud transfer costs and improve responsiveness by processing data closer to endpoints.
A practical cost model usually includes:
- filter at the edge for noisy or ultra-high-frequency signals
- batch where acceptable for non-real-time analytics
- store recent data hot, archive history cold
- precompute aggregates for dashboards instead of querying raw streams
- choose QoS deliberately, not by default
On security, per-device identity matters. AWS IoT Core supports X.509 certificates for authenticating clients and devices, and Microsoft recommends CA-signed X.509 for production scenarios in Azure IoT Hub. NIST’s IoT cybersecurity guidance also frames security as a device requirement problem, not just a cloud problem.
At minimum, a production IoT pipeline should include:
- unique device identity
- TLS in transit
- certificate or equivalent strong authentication
- least-privilege publish/subscribe permissions
- secure update process
- fleet-level auditability
- monitoring for abnormal reconnects, auth failures, and rule misfires
If your current stack relies on direct DB writes, manual topic conventions, and dashboard-side fixes, simplifying the pipeline now is usually cheaper than scaling the mess later.
Real-World Mini Case Study
Imagine a facilities company deploying indoor air-quality sensors across 120 buildings.
Each sensor samples CO2, PM2.5, temperature, and humidity every 30 seconds. A naive design sends every raw value straight to a central database. That works for a pilot, but it creates avoidable cost and noise at scale.
A production design would look different:
- The device publishes telemetry over MQTT.
- An edge gateway buffers data during link loss.
- The broker routes alarm events and regular telemetry differently.
- Threshold breaches are forwarded immediately.
- Routine readings are aggregated into 5-minute summaries for dashboards.
- Raw readings are retained briefly for troubleshooting.
- Daily rollups are stored longer for reporting.
.png)
FAQs
What is an IoT data pipeline?
It is the system that ingests, routes, stores, processes, and visualizes device data from sensors through to dashboards, alerts, and downstream applications.
Why is MQTT so common in IoT?
Because it is a lightweight publish/subscribe protocol designed for constrained devices and bandwidth-limited networks, making it well suited to telemetry-heavy systems.
Do I always need Kafka in an IoT stack?
No. Kafka is valuable when you need durable event history, replay, multiple consumers, and high-throughput fan-out. Small systems can often start with a broker plus rules and a time-series database.
What database is best for IoT telemetry?
Usually a time-series database or a relational system with strong time-series support. The right answer depends on query patterns, retention policy, and whether telemetry is your main workload. InfluxDB and TimescaleDB are both common choices for this reason.
Should I process data at the edge?
Often, yes. Edge processing reduces latency and can cut cloud transfer and storage costs by filtering, buffering, or aggregating data before sending it upstream.
How do I handle devices that go offline?
Use a local buffer at the edge and a cloud-side state mechanism. AWS Device Shadow and Azure device twins are designed to keep device state available and synchronized even across disconnects.
How should I secure an IoT data pipeline?
Start with unique device identity, strong authentication, TLS, least-privilege authorization, secure update workflows, and operational monitoring. X.509-based authentication is supported by AWS IoT Core and recommended for production in Azure IoT Hub scenarios.
How do I keep dashboards fast?
Do not query raw high-frequency data for every panel. Store recent hot data, build rollups, and pre-aggregate metrics for common dashboard views.
If you are planning a new deployment or cleaning up an existing sensor-to-dashboard stack, contact us to review the architecture and map the right production blueprint.
An IoT solution is not proven when a sensor sends data once. It is proven when the right data arrives, reliably, securely, and usefully, at scale.
Conclusion
A strong IoT data pipeline is more than a connection between a device and a dashboard. It is the foundation that makes telemetry reliable, scalable, secure, and actionable in the real world. When teams design for buffering, routing, storage, visibility, and cost control from the start, they avoid fragile architectures and create systems that can grow from pilot to production with confidence.
