Industrial IoT UX: Human-Centered Design Guide
Industrial IoT promises real-time visibility, data-driven decisions, and smarter automation. But in factories, energy plants, or logistics hubs, the success of an IIoT solution rarely depends on machine intelligence alone—it depends on the human-machine interface (HMI) workers use every minute. Many IoT deployments fail because dashboards are too complex, alerts trigger incorrectly, or workflows ignore operator context.
In this guide, you’ll learn what Industrial IoT UX really means, why it matters for uptime and safety, and how to design interfaces that support the people who run machines—not just the data they generate.
What Is Industrial IoT UX and Why It Matters
Definition
Industrial IoT UX refers to the design of interfaces, workflows, alerts, and interactions used by operators in industrial environments to understand and act on IoT data. It includes dashboards, mobile apps, digital twins, HMIs, and visualization tools.
Why UX Matters
A well-designed UX can:
- Reduce downtime by helping operators diagnose faster
- Improve safety by avoiding alert fatigue
- Increase adoption across technicians and engineers
- Shorten training time for new workers
- Turn raw sensor data into actionable decisions
How Industrial IoT UX Works
Mental Model

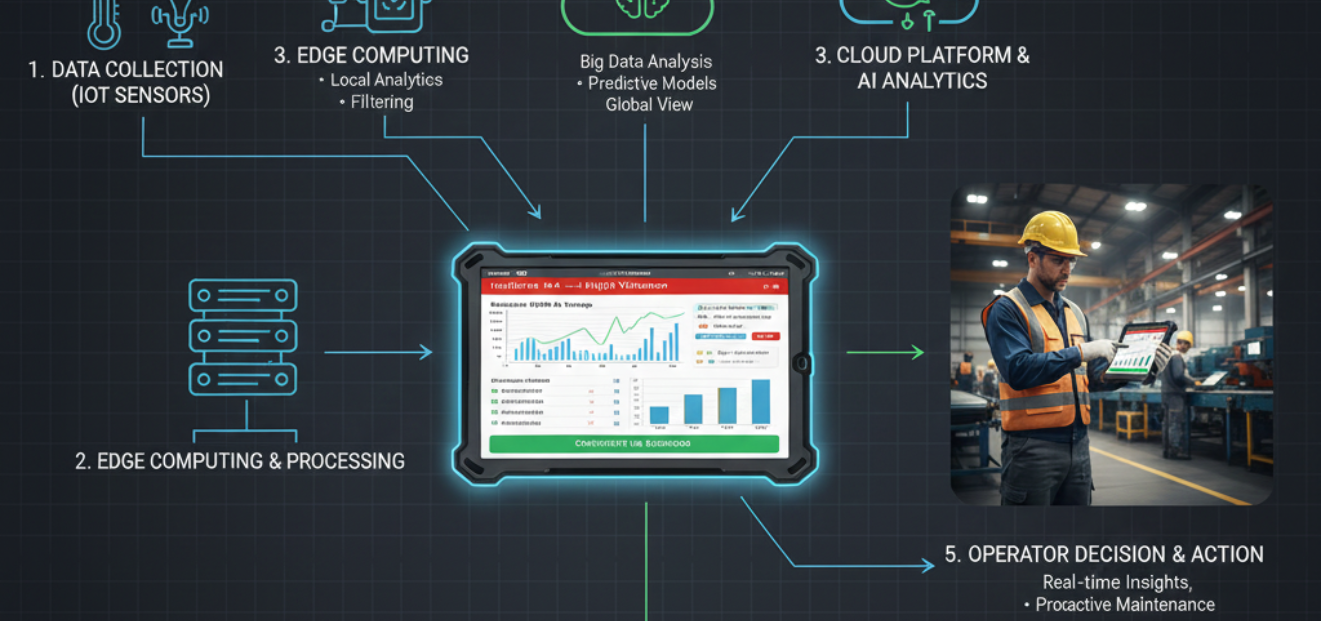

IIoT UX follows a three-layer interaction model:
- Sense & Collect
Sensors gather metrics: vibration, pressure, temperature, energy use. - Compute & Analyze
Edge or cloud systems detect anomalies, trends, or thresholds. - Visualize & Act
Operators receive insights via dashboards, alarms, mobile apps.
Foundational Principles
- Contextual relevance: only show what matters now
- Fast recognition: color + shape + iconography
- Minimal cognitive load: avoid dense layouts
- Accessible in harsh environments: gloves, glare, noise
- Multi-modality: visual + haptic + audible alerts
Explore how contextual UX and industrial workflows can transform your IIoT adoption. Contact our experts.
Best Practices & Common Pitfalls
Checklist
- □ Conduct ethnographic research on the shop floor
- □ Design for quick scanning, not deep reading
- □ Encode states with shape + color + location
- □ Add offline-first behavior for connectivity issues
- □ Preset safe defaults for thresholds
- □ Create clear escalation paths
Common Pitfalls
- Tiny UI elements on fixed HMIs
- Excessive chart types
- Using cloud dashboards for real-time edge alerts
- Ignoring multilingual needs
- Over-reliance on red/yellow/green coding
Performance, Cost & Security Considerations
Performance
- Edge computing reduces latency for safety-critical alerts
- Caching reduces load times for historical data
- Hardware acceleration improves visualization responsiveness
Cost
- Custom UI components are expensive to maintain
- Proprietary systems create lock-in
- Cloud visualization can reduce upfront cost
Security
- Encrypted telemetry channels
- Role-based access control (RBAC)
- Safety protocols for alert spoofing
Real-world Use Cases
Mini Case Study: Predictive Maintenance
A manufacturing plant introduced a mobile dashboard for predictive maintenance using vibration sensors on rotating equipment. Before UX optimization:
- Operators ignored alerts
- Data was buried in charts
- No clear action pathway
After redesign:
- A single anomaly score replaced multiple charts
- A guided workflow walked through inspection steps
- Training time dropped by 48%
- Mean Time to Diagnose (MTTD) improved by 57%
.png)
FAQs
What is Industrial IoT UX?
It’s the design discipline focused on interfaces used to interact with IoT data in industrial environments such as factories, plants, and logistics hubs.
Why does UX matter in IIoT?
Good UX helps operators make faster, safer decisions by simplifying complex real-time data.
What are the challenges?
Harsh environments, variable connectivity, safety requirements, and diverse user roles.
How do I design dashboards for IIoT?
Use context-aware layouts, simple visual encodings, and workflows tied to equipment states.
What tools are used?
Figma for wireframes, Ignition or Qt for HMI, Grafana/Kibana for visualization.
How does UX reduce downtime?
By improving anomaly detection visibility and guiding operators toward root-cause analysis.
In industrial IoT, value isn’t created by sensors—it’s created when operators understand the data and act with confidence.
Conclusion
Industrial IoT succeeds when the interface becomes an extension of the operator, not just a window into data streams. Human-centered UX bridges the gap between complex systems and real-world decisions, reducing downtime, improving safety, and building trust on the factory floor. By prioritizing clarity over complexity, designing for harsh conditions, and aligning workflows with real operator behavior, organizations can unlock the true potential of Industrial IoT.
